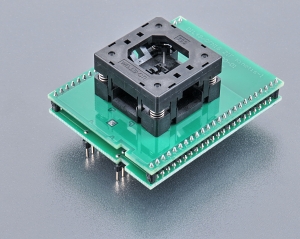

DIL48/QFN16 ZIF Kinetis-1
Order No.: 70-3206

specialized adapter, assigned for Freescale Kinetis KL0x family devices in QFN16 package
operation life of socket - 10 000 actuations
supported from PG4UW software version 3.20r

Ord. no. 70-3206
Socket ZIF QFN16, open top type
Bottom 2 rows, 2x24 pins, 0.6x0.6mm,  row spacing 600mil
Class Specialized
Subclass Motorola/Freescale MCU


Order no.: 70-3206
Price:        €

Converter manual

  • Protect the contacts of adapters's connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Usage of is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Push the cover of adapter's ZIF socket (the topmost movable part) to open the socket. Insert the device into adapter's ZIF socket. Correct position of programmed device in adapter's ZIF socket is indicated by picture near (usually on left above) the adapter's ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned. Then release adapter's ZIF socket.
  • Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • The cover must be fully actuated (depressed) before inserting a device into the socket. If device is inserted into only partially opened ZIF socket, then - after releasing of cover – device pins might be damaged.
  • Do not press on device while inserting it and/or releasing the cover.
  • Visually check the placement of programmed device in adapter's ZIF socket. If everything looks OK, the device is ready for programming.
  • To take out the device, open converter ClamShell ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.
  • For handling with the device we recommended to use a vacuum pick up tool.

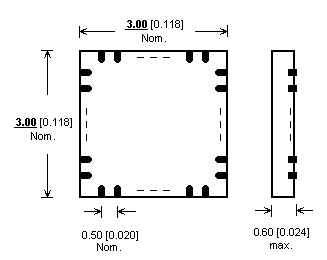

Accepted package(s)

QFN16
