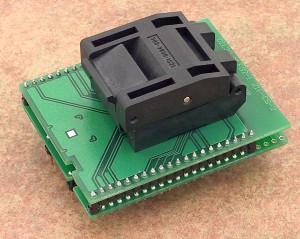

Converter
DIL33/MLF32-1 ZIF-CS-2
- universal converter, assigned for
devices in MLF32 (CY8C20446 or CY8C24423A)
- operation (mechanical) life of ZIF socket -
5.000 actuations
- socket:
ZIF MLF33, Clamshel type
- bottom: 2
rows, 2x 16 pins, square, 0.6x0.6mm, rows spacing
600mil
- Order no.: 70-1161
- Price: € 240,00
|
|
Verdrahtung:
|
MLF - |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
|
DIL - |
1 |
2 |
4 |
8 |
5 |
6 |
7 |
3 |
11 |
10 |
9 |
12 |
13 |
14 |
15 |
16 |
17 |
32 |
19 |
20 |
27 |
22 |
23 |
24 |
25 |
29 |
21 |
18 |
26 |
30 |
31 |
28 | |
|
Converter manual
- Insert converter to the
device programmer ZIF socket according to the
picture placed near of it. If you have some
doubts about orientation of this converter in
device programmer ZIF socket, it is valid
general rule, the orientation of the text of
title is the same as the text on the top of the
device programmer.
- Open the converter ClamShell
ZIF socket. Insert the device into it (place
device on contacts). The right position of the
programmed device in converter ZIF socket is
show at picture near (mainly left above) the
converter ZIF socket. On this picture reference
corner (e.g. position of pin 1) of device is
indicated by dot, by number 1, by bezel or by
any combination of them.
- Visually check
interconnection between device and converter
ClamShell ZIF socket. If everything looks OK,
close it and now, device is ready for
programming.
- Be careful, because the
incorrect insertion of converter to the device
programmer ZIF socket or device to the converter
ClamShell ZIF socket can damage the programmed
device.
- To take out the device, open
converter ClamShell ZIF socket and remove device
from it.
- When you finish work with
converter, remove it from the device programmer
ZIF socket.
- Do not directly touch the
pins of the converter and converter ZIF socket,
because dirt may cause errors during programming
of device.
- For handling with the device
we recommended to use a
vacuum pick up
tool.
|
|
Accepted package(s)
|
| MLF32 |
 |
|
|
|
|
