Module manual

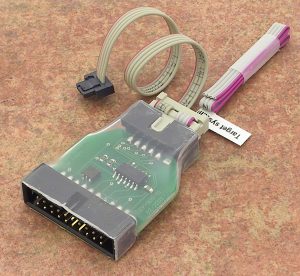

• Connect module with programmer and target system according to picture at bottom page.
• Package also contain cable with ERNI connector, to connect to target system.
• Descrition of Module ISP-STM8-20 connector pins:
•   1 - Target VCC check only *1
•   2 - SWIM *1
•   3 - GND (VSS) *1
•   4 - Reset *1
•   5 - GND (VSS)
•   6 - GND (VSS)
•   7 - GND (VSS)
•   8 - GND (VSS)
•   9 - Target system power supply *2
•  10 - Target system power supply *2
• Notes:
•   *1 Module and SWIM connector pins 1..4 have common signals.
•   *2 Programmer can provide a power supply for the target system.

Connection details
