Converter

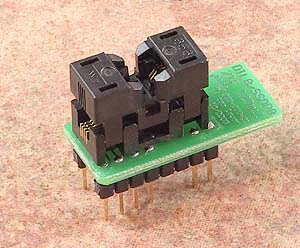

DIL8/SSOP8 ZIF 120mil
- universal converter, assigned for SSOP8
devices (e.g. for Microchip 25xx family in
MSOP8)
- operation (mechanical) life of ZIF socket - 10.000 actuations
- socket: ZIF SSOP8, open top type
- 2 rows, 2x 4 pins (plus 2x 2 pins for
improve stability), square, 0.6x0.6mm, rows
spacing
300mil
- Order no.: 70-0358
- Price: € 198,28
|
|
|
Converter manual
-
Insert converter to the programmer
ZIF socket according to the picture placed near of it.
Push the top of converter ZIF socket to open it.
Insert the device into the converter ZIF socket. The
right position of the programmed device in converter
ZIF socket is show at picture near (mainly left above)
the converter ZIF socket. Then release converter ZIF
socket.
-
Visually check interconnection
between device and converter ZIF socket. If everything
looks OK, the device is ready for programming.
-
Be careful, because the incorrect
insertion of converter to the programmer ZIF socket or
device to the converter ZIF socket can damage the
programmed device.
-
To take out the device push the top
of converter ZIF socket and remove device from
it.
-
When you finish work with converter, remove it from the programmer ZIF
socket.
-
Do not directly touch the pins of
the converter and converter ZIF socket, because dirt
may cause errors during programming of device.
-
For handling with the device we
recommended to use a vacuum pick up
tool.
|
|
Accepted package(s)
|
| SSOP-8 |
 |
|
|
|
|
