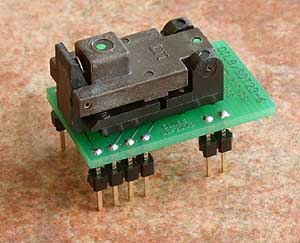

Converter
DIL8/SOT23-6 ZIF-CS PIC
- special converter assigned for
PICmicro in SOT23-6
- package (PIC10Fxxx)
- accessory for JetProg,
BeeProg, LabProg+,
LabProg-48LV, SmartProg, SmartProg2, PIKprog+ and
PIKprog
- operation (mechanical) life of ZIF socket - 10.000 actuations
- socket: ZIF SOT23-6,
ClamShell type
- bottom: 2 rows, 2x 4 pins (plus 2x 2 pins for
improve stability), square, 0.6x0.6mm, rows
spacing
300mil
- Order no.: 70-0255
- Price: € 198,28
wiring is:
| SOT23
- |
5 |
NC |
NC |
6 |
4 |
3 |
1 |
2 |
| DIL
- |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
|
|
Accepted package(s)
|
| SOT23-6 |
 |
|
|
|
|
