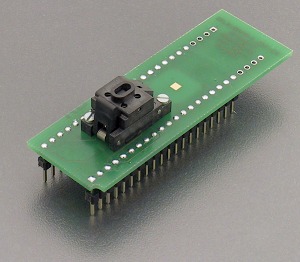

DIL8/BGA8-1 ZIF-CS SFlash-1
Order No.: 70-2861

sspecial adapter, assigned for Serial Flash devices in 8BALL WLCSP package
operation (mechanical) life of ZIF socket - 500.000 actuations

Ord. no. 70-2861
Socket ZIF BGA8, ClamShell type
Bottom 2 rows, 2x20 pins square, 0.6x0.6mm
Class Specialized
Subclass EPROM/Flash

Move the cursor over the picture for additional view

Order no.: 70-2861
Price:        € 590,00

Adapter manual

  • Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Open the adapter ClamShell ZIF socket. Insert the device inside (place device on contacts). The right position of the programmed device in adapter BGA ZIF socket is shown on body of adapter. The reference corner (position of pin A1) of the device is indicated by dot.
  • Visually check interconnection between device and adapter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ClamShell ZIF socket can damage the programmed device.
  • To take out the device, open adapter ClamShell ZIF socket and remove device from it.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package



NAME

SYMBOL MIN NOM MAX

Profile

A 0.35 0.4 0.45

Ball Height

A1 0.1 0.13 0.16

Body Thickness

A2 - - -

Ball Diameter

b 0.22 0.25 0.28

Body Size

D - 1.46 -

Body Size

E - 1.4 -

Ball Pitch

e - 0.5 -

Ball Array D

GD - 3 -

Ball Array E

GE - 3 -
