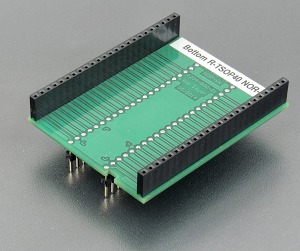

Bottom R-TSOP40 NOR-2
Order No.: 70-1234

bottom board of NOR adapter, assigned for Flash devices with reverse pinout NOR-2
supported from PG4UW software version 3.07a

Ord. no. 70-1234
Socket 2 rows, 2x24 pins, wire wrap pins, 0.6x0.6mm
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm,  row spacing 600mil
Class Specialized
Subclass EPROM/Flash

Order no.: 70-1234
Price:        € 30,00

Converter manual

  • For work with device it is necessary put together NOR Bottom x with some NOR Top x ZIF according the information provided by PG4UW software.
  • The picture show, how to put together NOR Bottom x and NOR Top x to have complete NOR adapter.
  • Insert comlete adapter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket.
  • Visually check interconnection between device and adapter ZIF socket. If everything looks OK, the device is ready for programming.
  • Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the adapter ZIF socket can damage the programmed device.
  • To take out the device push the top of adapter ZIF socket and remove device from it.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
