BGA-Top-62 ZIF-CS
Order No.: 70-0484

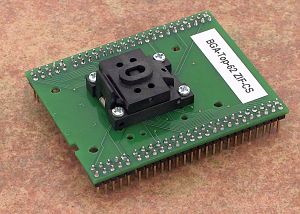

top board of BGA adapters
used ZIF socket may accepts one or more variants of supported package, different in ball diameter, ball high and/or body thickness. The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board
operation (mechanical) life of ZIF socket - 500.000 actuations

Ord. no. 70-0484
Socket ZIF BGA120, (depopulated array of (60) spring probes), ClamShell type
Bottom 4 rows, 4x25 pins square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top



Order no.: 70-0484
Price:        € 630,00

Adapter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • For work with BGA device it is necessary put together BGA-Top-62 ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package



NAME

SYMBOL MIN NOM MAX

Profile

A 0.86 - 1

Ball Height

A1 0.2 - -

Body Thickness

A2 0.66 0.71 0.76

Ball Diameter

b 0.25 0.3 0.35

Body Size

D 9.85 9.95 10.05

Body Size

E 10.85 10.95 11.05

Ball Pitch

e - 0.5 -

Ball Array D

GD - 18 -

Ball Array E

GE - 12 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.2

Ball Height

A1 0.2 - -

Body Thickness

A2 0.85 - 0.97

Ball Diameter

b 0.25 0.3 0.35

Body Size

D - 10.95 -

Body Size

E - 9.95 -

Ball Pitch

e - 0.5 -

Ball Array D

GD - 18 -

Ball Array E

GE - 14 -
