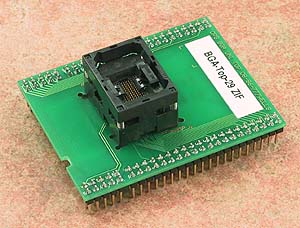

BGA-Top-29 ZIF
Order No.: 70-0336
top board of BGA adapters
used ZIF socket may accept one or more variants of supported package, different in ball diameter, ball high and/or body thickness, see section Accepted package(s)
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0336
Socket ZIF BGA80, open top type
Bottom 4 rows, 4x 25 pins, square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top

Order no.: 70-0336
Price:        € 310,00

Converter manual

  • For work with BGA device it is necessary put together BGA-Top-29 ZIF with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • The top cover must be fully actuated (depressed) before inserting a package into the socket. If the chip is inserted into only partially opened ZIF socket, then - after releasing of top - the tweezer contact might bend and if more times done by this way also tweezer contact can be broken.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%..80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.25 - -

Body Thickness

 A2 - - -

Ball Diameter

 b - 0.4 -

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1.2 1.3 1.4

Ball Height

 A1 0.27 0.32 0.37

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 9.8 10 10.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 10 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1.2 1.3 1.4

Ball Height

 A1 0.27 0.32 0.37

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 10 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1.2 1.3 1.4

Ball Height

 A1 0.3 0.35 0.4

Body Thickness

 A2 - - -

Ball Diameter

 b 0.4 0.45 0.5

Body Size

 D 9.8 10 10.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1.2 1.3 1.4

Ball Height

 A1 0.27 0.32 0.37

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 10 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.3 0.35 0.4

Body Thickness

 A2 - - -

Ball Diameter

 b 0.4 0.45 0.5

Body Size

 D 9.8 10 10.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Body Thickness

 A2 0.81 - 0.97

Ball Diameter

 b 0.33 - 0.43

Body Size

 D - 10 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 10 -

Ball Array E

 GE - 10 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.27 0.32 0.37

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 10 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Body Thickness

 A2 - 0.86 -

Ball Diameter

 b 0.325 0.375 0.425

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Body Thickness

 A2 - 0.85 -

Ball Diameter

 b 0.3 0.35 0.4

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Body Thickness

 A2 0.79 - 0.96

Ball Diameter

 b 0.33 0.38 0.43

Body Size

 D - 10 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Body Thickness

 A2 0.82 - 0.9

Ball Diameter

 b 0.33 - 0.43

Body Size

 D - 10 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Body Thickness

 A2 - 0.86 -

Ball Diameter

 b 0.325 0.375 0.425

Body Size

 D 10.9 11 11.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1 1.1 1.2

Ball Height

 A1 0.16 0.21 0.26

Body Thickness

 A2 - - -

Ball Diameter

 b 0.25 0.3 0.35

Body Size

 D 9.8 10 10.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 0.25 0.3

Body Thickness

 A2 - - -

Ball Diameter

 b 0.25 0.3 0.35

Body Size

 D 9.95 10 10.05

Body Size

 E 7.95 8 8.05

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1 1.1 1.2

Ball Height

 A1 0.3 0.35 0.4

Body Thickness

 A2 - - -

Ball Diameter

 b 0.4 0.45 0.5

Body Size

 D 9.8 10 10.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.22 0.26 0.3

Body Thickness

 A2 - - -

Ball Diameter

 b 0.41 0.46 0.51

Body Size

 D - 10 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.4

Ball Height

 A1 0.2 - -

Body Thickness

 A2 - 1 -

Ball Diameter

 b 0.3 0.35 0.4

Body Size

 D 7.9 8 8.1

Body Size

 E 9.9 10 10.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.4

Ball Height

 A1 0.2 0.25 0.3

Body Thickness

 A2 0.91 0.96 1.01

Ball Diameter

 b 0.3 0.35 0.4

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.4

Ball Height

 A1 0.2 - -

Body Thickness

 A2 - 1.07 -

Ball Diameter

 b 0.325 0.375 0.425

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1.2 1.3 1.4

Ball Height

 A1 0.27 0.32 0.37

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 9.8 10 10.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 10 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.3

Ball Height

 A1 0.2 0.25 0.3

Body Thickness

 A2 0.84 0.89 0.94

Ball Diameter

 b 0.3 0.35 0.4

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 8  -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.4

Ball Height

 A1 0.25 - -

Body Thickness

 A2 - 0.96 -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 9.9 10 10.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 0.25 0.3

Body Thickness

 A2 0.81 0.86 0.96

Ball Diameter

 b 0.32 0.375 0.425

Body Size

 D - 10 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 8 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.17 - -

Body Thickness

 A2 0.81 - 0.97

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D - 10 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 12 -

Ball Array E

 GE - 10 -
