Converter

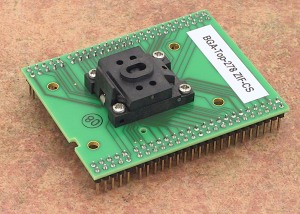

BGA-Top-278 ZIF-CS

  • top board of BGA adapters
  • ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.
    •
  • The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
  • operation (mechanical) life of ZIF socket: 500.000 actuations
  • Socket: ZIF BGA50, ClamShell type
  • Bottom. 4 rows, 4x 25 pins, square, 0.6x0.6mm
  • Order no.: 70-2579
  • Price: €

Adapter manual

  •  For work with BGA device it is necessary put together BGA-Top-278ZIF-CS with some BGA-Bottom-x board according to the information provides by PG4UW software.
  • Do not directly touch the pins of the adapter, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pick up tool.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter

Accepted package(s)

BGA package



NAME

 SYMBOL MIN NOM MAX

Profile

 A 0.8 0.9 1

Ball Height

 A1 0.17 0.22 0.27

Ball Thickness

 A2 - - -

Ball Diameter

 b 0.25 0.3 0.35

Body Size

 D 12.9 13 13.1

Body Size

 E 11.4 11.5 11.6

Ball Pitch

 e - 0.5 -

Ball Array D

 GD - 14 -

Ball Array E

 GE - 14 -
