Converter

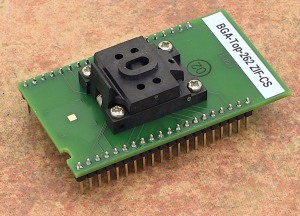

BGA-Top-262 ZIF-CS

  • top board of BGA converters
  • ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball width and package thickness.
  • The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
  • operation (mechanical) life of ZIF socket - 500.000 actuations
  • socket: ZIF BGA28, ClamShell type
  • bottom: 2 rows, 2x20 pins, square, 0.6x0.6mm
  • Order no.: 70-2325
  • Price: €

Converter manual

  • For work with BGA device it is necessary put together BGA-Top-262 ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • Do not directly touch the pins of the converter, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pipette pick up tool.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA converter




Accepted package(s)

BGA package



NAME

 SYMBOL MIN NOM MAX

Profile

 A 0.44 0.59 0.64

Ball Height

 A1 0.165 0.19 0.215

Body Thickness

 A2 0.375 0.4 0.425

Ball Diameter

 b 0.265 0.27 0.275

Body Size

 D 2.815 2.835 2.855

Body Size

 E 1.677 1.697 1.717

Ball Pitch

 e 0.39 0.4 0.41

Ball Array D

 GD - 7 -

Ball Array E

 GE - 4 -
