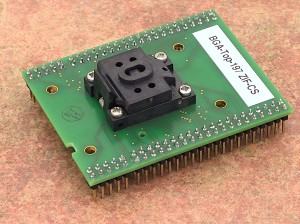

Move
cursor over picture to additional converter
view. Move cursor out to see original picture. |
Converter
BGA-Top-197 ZIF-CS
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation
(mechanical) life of ZIF socket - 500.000
actuations
- socket: ZIF BGA64, ClamShell type
- bottom: 4 rows, 4x25 pins, square,
0.6x0.6mm
- Order no.: 70-2586
- Price: €
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Top-197 ZIF-CS with some
BGA-Bottom-x board according to the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device.
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter
- For handling with the
device we recommended to use a
vacuum
pipette pick up tool.
 |
|
|
|
Accepted package(s)
|
|
BGA package
|
 |
|
|
|
|
|
|
|
NAME |
SYMBOL |
MIN |
NOM |
MAX |
|
Profile |
A |
0.8 |
0.9 |
1 |
|
Ball Height |
A1 |
0.27 |
0.32 |
0.37 |
|
Body Thickness |
A2 |
- |
- |
- |
|
Ball Diameter |
b |
0.4 |
0.45 |
0.5 |
|
Body Size |
D |
10.9 |
11 |
11.1 |
|
Body Size |
E |
8.9 |
9 |
9.1 |
|
Ball Pitch |
e |
- |
0.8 |
- |
|
Ball Array D |
GD |
- |
12 |
- |
|
Ball Array E |
GE |
- |
10 |
- |
|
|
NAME |
SYMBOL |
MIN |
NOM |
MAX |
|
Profile |
A |
0.8 |
0.9 |
1 |
|
Ball Height |
A1 |
0.25 |
0.3 |
0.35 |
|
Body Thickness |
A2 |
0.55 |
0.6 |
0.65 |
|
Ball Diameter |
b |
0.4 |
0.45 |
0.5 |
|
Body Size |
D |
10.9 |
11 |
11.1 |
|
Body Size |
E |
8.9 |
9 |
9.1 |
|
Ball Pitch |
e |
- |
0.8 |
- |
|
Ball Array D |
GD |
- |
12 |
- |
|
Ball Array E |
GE |
- |
10 |
- |
|
|
| NAME | SYMBOL | MIN | NOM |
MAX |
| Profile | A |
- |
- |
1 |
| Ball Height | A1 |
0.25 |
- |
- |
|
Body Thickness | A2 |
- |
- |
- |
| Ball Diameter | b |
0.4 |
0.45 |
0.5 |
| Body Size | D |
10.9 |
11 |
11.1 |
| Body Size | E |
8.9 |
9 |
9.1 |
| Ball Pitch | e |
- |
0.8 |
- |
| Ball Array D | GD |
- |
12 |
- |
| Ball Array E | GE |
- |
10 |
- |
|
|
NAME |
SYMBOL |
MIN |
NOM |
MAX |
|
Profile |
A |
- |
- |
1.05 |
|
Ball Height |
A1 |
0.25 |
- |
- |
|
Body Thickness |
A2 |
- |
- |
0.7 |
|
Ball Diameter |
b |
0.4 |
0.45 |
0.5 |
|
Body Size |
D |
10.9 |
11 |
11.1 |
|
Body Size |
E |
8.9 |
9 |
9.1 |
|
Ball Pitch |
e |
- |
0.8 |
- |
|
Ball Array D |
GD |
- |
12 |
- |
|
Ball Array E |
GE |
- |
10 |
- |
|
|
| NAME | SYMBOL | MIN | NOM |
MAX |
| Profile | A |
- |
- |
1.05 |
| Ball Height | A1 |
0.25 |
- |
- |
|
Body Thickness | A2 |
- |
0.65 |
- |
| Ball Diameter | b |
0.4 |
0.45 |
0.5 |
| Body Size | D |
10.9 |
7 |
7.1 |
| Body Size | E |
8.9 |
9 |
9.1 |
| Ball Pitch | e |
- |
0.8 |
- |
| Ball Array D | GD |
- |
12 |
- |
| Ball Array E | GE |
- |
10 |
- |
|
|
NAME |
SYMBOL |
MIN |
NOM |
MAX |
|
Profile |
A |
- |
- |
1 |
|
Ball Height |
A1 |
0.25 |
- |
- |
|
Body Thickness |
A2 |
0.6 |
0.65 |
0.7 |
|
Ball Diameter |
b |
- |
0.45 |
- |
|
Body Size |
D |
10.9 |
11 |
11.1 |
|
Body Size |
E |
8.9 |
9 |
9.1 |
|
Ball Pitch |
e |
- |
0.8 |
- |
|
Ball Array D |
GD |
- |
12 |
- |
|
Ball Array E |
GE |
- |
10 |
- |
|
|
|
NAME |
SYMBOL |
MIN |
NOM |
MAX |
|
Profile |
A |
- |
- |
1 |
|
Ball Height |
A1 |
0.22 |
0.25 |
0.3 |
|
Body Thickness |
A2 |
- |
- |
- |
|
Ball Diameter |
b |
0.41 |
0.46 |
0.51 |
|
Body Size |
D |
- |
11 |
- |
|
Body Size |
E |
- |
9 |
- |
|
Ball Pitch |
e |
- |
0.8 |
- |
|
Ball Array D |
GD |
- |
12 |
- |
|
Ball Array E |
GE |
- |
10 |
- |
|
