Converter

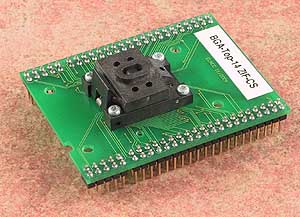

BGA-Top-14 ZIF-CS
- top board of BGA converters
- ZIF socket accepts many variations of BGA packages, that differ in ball
diameter, ball width
and package thickness.
- The picture at Accepted package(s) section
shows the range of all dimensions of BGA packages,
which are accepted by this BGA-Top board.
- operation (mechanical) life of ZIF socket - 500.000
actuations
- accessory for BeeProg,
JetProg, LabProg+ and
LabProg-48LV
- socket: ZIF BGA48,
ClamShell type
- bottom: 4 rows, 4x25 pins, square,
0.6x0.6mm
- Order no.:
70-0272
- Price: € 430,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Top-14 ZIF-CS with some
BGA-Bottom-x board according to the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device.
- For handling with the
device we recommended to use a vacuum
pipette pick up tool.
-
The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
Accepted package(s)
|
|
BGA
package
|
 |
|
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.2 |
- |
- |
|
Ball Thickness
|
A2 |
- |
- |
1 |
|
Ball Diameter
|
b |
0.35 |
0.4 |
0.45 |
|
Body Size
|
D |
8.9 |
9 |
9.1 |
|
Body Size
|
E |
5.9 |
6 |
6.1 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
8 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.2 |
|
Ball Height
|
A1 |
0.2 |
- |
- |
|
Ball Thickness
|
A2 |
0.84 |
- |
0.94 |
|
Ball Diameter
|
b |
0.25 |
0.3 |
0.35 |
|
Body Size
|
D |
- |
9 |
- |
|
Body Size
|
E |
- |
6 |
- |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
8 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
1.15 |
1.25 |
1.35 |
|
Ball Height
|
A1 |
0.25 |
0,3 |
0.35 |
|
Ball Thickness
|
A2 |
- |
0.95 |
- |
|
Ball Diameter
|
b |
0.35 |
0.4 |
0.45 |
|
Body Size
|
D |
8.8 |
9 |
9.2 |
|
Body Size
|
E |
5.8 |
6 |
6.2 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
8 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
1.35 |
|
Ball Height
|
A1 |
0.2 |
0,3 |
0.35 |
|
Ball Thickness
|
A2 |
0.75 |
- |
1 |
|
Ball Diameter
|
b |
0.3 |
- |
0.55 |
|
Body Size
|
D |
8.8 |
9 |
9.2 |
|
Body Size
|
E |
5.8 |
6 |
6.2 |
|
Ball Pitch
|
e |
- |
0.8 |
- |
|
Ball Array D
|
GD |
- |
8 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
|
