Converter

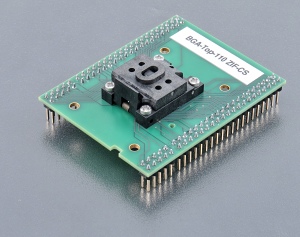

BGA-Top-110 ZIF-CS

  • top board of BGA converters
  • ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball width and package thickness.
  • The picture at accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
  • operation (mechanical) life of ZIF socket - 500.000 actuations
  • socket: ZIF BGA64, ClamShell type
  • bottom: 4 rows, 4x 25 pins, square, 0.6x0.6mm
  • Order no.: 70-0612
  • Price: € 430,00

Converter manual

  • For work with BGA device it is necessary put together BGA-Top-110 ZIF with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • Do not directly touch the pins of the converter, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pipette pick up tool.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA converter



Accepted package(s)

BGA package



NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.2 - -

Ball Thickness

 A2 0.84 - 0.35

Ball Diameter

 b 0.25 0.3 0.5

Body Size

 D - 9 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.35

Ball Height

 A1 0.2 0.3 0.35

Ball Thickness

 A2 - - 1

Ball Diameter

 b 0.3 - 0.55

Body Size

 D 8.9 9 9.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.18 0.23 0.28

Ball Thickness

 A2 0.65 - -

Ball Diameter

 b 0.27 0.3 0.37

Body Size

 D 8.9 9 9.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.1

Ball Height

 A1 0.2 - -

Ball Thickness

 A2 - 0.76 -

Ball Diameter

 b 0.25 0.3 0.35

Body Size

 D 8.9 9 9.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 1 - 1.2

Ball Height

 A1 0.2 - 0.3

Ball Thickness

 A2 0.84 - 0.94

Ball Diameter

 b 0.25 - 0.35

Body Size

 D - 9 -

Body Size

 E - 8 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.35

Ball Height

 A1 0.2 0.3 -

Ball Thickness

 A2 0.75 - 1

Ball Diameter

 b 0.3 - 0.55

Body Size

 D 8.8 9 9.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.35

Ball Height

 A1 0.2 0.3 0.35

Ball Thickness

 A2 - - 1

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 8.9 9 9.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.3

Ball Height

 A1 0.25 0.3 0.35

Ball Thickness

 A2 0.65 - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 8.9 9 9.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.26 0.3 0.34

Ball Thickness

 A2 0.75 - 0.86

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 8.9 9 9.1

Body Size

 E 7.9 8 8.1

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1

Ball Height

 A1 0.2 - 0.3

Ball Thickness

 A2 0.62 - 0.76

Ball Diameter

 b 0.3 0.35 0.4

Body Size

 D - 8.95 -

Body Size

 E - 7.95 -

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 8 -
