Converter

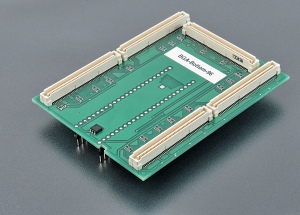

BGA-Bottom-96
- bottom board of BGA
converters, assigned for Altera EPM2210 PLD with
balls in matrix 18x18
-
socket: 8+2 rows, sockets for
8x 50+2x50 B-T-B connector, pitch 0.8mm
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows
spacing
600mil
- order no.: 70-0998
- Price: €
149,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-96 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
