Converter

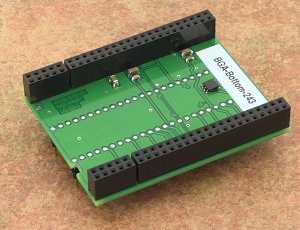

BGA-Bottom-243
- bottom board of BGA
converters, assigned for eMMC devices in matrix
11x8+4x3 for example NAND16GAHAP, MTFC4GGQDQ
-
4 rows, sockets for 4x25 wire wrap pin
- bottom:
2 rows, 2x 24 pins, square,
0.6x0.6mm, rows spacing 600mil
- order no.:
70-2249
- Price: € 99,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-243 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
