Converter

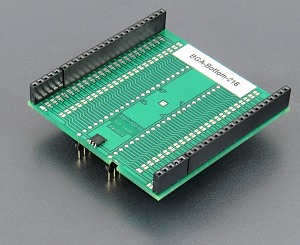

BGA-Bottom-218
- universal bottom
board of BGA converter
-
2 rows, sockets for 2x25 wire wrap pin
- bottom:
2 rows, 2x 24 pins, square,
0.6x0.6mm, rows spacing 600mil
- order no.:
70-1423
- Price: €
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-218 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
