Converter

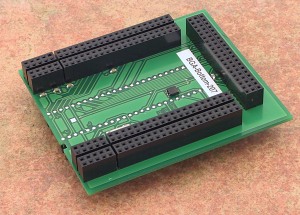

BGA-Bottom-207
- bottom board of BGA
converters, assigned for NXP LPC2458 with balls in
matrix 14x14-4x4
-
socket:
8+3 rows,
sockets for 8x25+3x20
- bottom: 2 rows, 2x 24 pins, square,
0.6x0.6mm, rows spacing 600mil
- order no.: 70-1347
- Price: €
99,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-207 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
