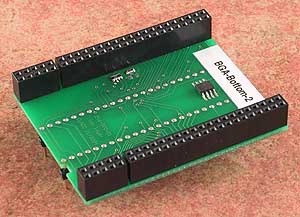

Converter
BGA-Bottom-2
- bottom board of BGA
converters, assigned for
Flash devices with balls in matrix 8x8
- accessory for BeeProg,
JetProg, LabProg+ and
LabProg-48LV
- socket: 4 rows, sockets for 4x 25 wire wrap
pin
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows
spacing
600mil
- order no.:
70-0246
- Price: € 80,69
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-2 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
