Converter

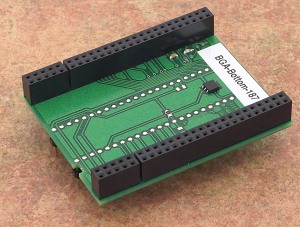

BGA-Bottom-187
- bottom board of BGA
converters, assigned for MXIC MX25L1655D,
MX25L12855E, AT45DB161D, M25PX64 with balls in
matrix 8x6
-
socket: 4 rows,
4x25 wire wrap pin, 0.6x0.6mm
- bottom:
2 rows, 2x 24 pins, square,
0.6x0.6mm, rows spacing 600mil
- order no.: 70-1114
- Price: € 90,00
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-187 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
