Converter

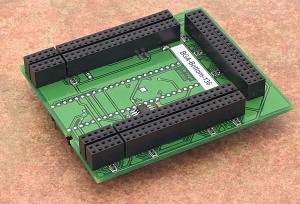

BGA-Bottom-136
- bottom board of BGA
converters, assigned for Actel IGLOO devices in
matrix 15x15-7x7+5x5
-
socket: 8+3 rows, sockets for
8x25+3x20 wire wrap
pin
- bottom: 2 rows, 2x 24
pins, square, 0.6x0.6mm, rows
spacing
600mil
- order no.: 70-1431
- Price: €
|
|
|
Converter manual
- For work with BGA device it is
necessary put together BGA-Bottom-136 with some
BGA-Top-x ZIF-CS board according the information
provided by PG4UW software.
- Do not directly touch the pins of
the converter, because dirt may cause errors during
programming of device
- The picture show, how to put
together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards
to have complete BGA converter.
 |
|
|
|
